FLOOD LIGHT SERIES                                                                                                                                                                  VIEW MORE

1.Widely used in shopping center,exhibition hall,parking lot,stadium,gymnasia,billboard,park,statue,government lighting decoration project,landmark or building,public square and passage,building connecting passage and other indoor or outdoor light applications.


2.Widely used in Tunnel Lighting, Municipal Project Lighting, City Landscape Lighting, Building Lighting, Outdoor Advertisement Board Lighting,etc.



PARAMETER


POWER   VOLTAGE  CURRENT   CHIP MODEL   LED QTY   WAY OF SERIES   PCB'S SIZE   POSITION OF

                                                                                                       -PARALLEL                               DRIVER


10           30                300             3030                 10(PCS)       2P5S              53*50*1.5(mm)       built-in

20           30                600             3030                 20(PCS)       4P5S              81.5*80*1.5(mm)    built-in

30           30                900             3030                 30(PCS)       6P5S              91*85*1.5(mm)        built-in

50           30                1500           3030                 50(PCS)       10P5S           132*111*1.5(mm)    built-in

80           30                2400           3030                 80(PCS)       16P5S           135*115*1.5(mm)    built-in

100         30                3000           3020                 100(PCS)    20P5S            184*155*1.5(mm)    built-in

150         30                4500           3030                 150(PCS)    30P5S            220*185*1.5(mm)    built-in
200         36                5000           3030                 200(PCS)    40P6S            250*219*1.5(mm)    built-in

PARAMETER


POWER   VOLTAGE  CURRENT   CHIP MODEL   LED QTY   WAY OF SERIES   PCB'S SIZE

                                                                                                       -PARALLEL


30             36             800              3535,1LA5        24(PCS)     2P12S               L260*W61*1.5(mm)

30/50       42             640/1100    3030                   56(PCS)    8P7S                  L260*W61*1.5(mm)

60             36             1600            3535,1LA5        48(PCS)    4P12S                L260*W61*1.5(mm)

60/100     42             1280/2200  3030                  112(PCS)  16P7S                L260*W61*1.5(mm)

90             36             2400             3535,1LA5       72(PCS)     6P12S               L260*W61*1.5(mm)

90/150     42             1920/3300   3030                 168(PCS)   24P7S               L260*W61*1.5(mm)

120           36             3200             3535,1LA5       96(PCS)     8P12S               L260*W61*1.5(mm)
120/200   42             2560/4400   3030                 224(PCS)   32P7S               L260*W61*1.5(mm)
150           36             4000             3535,1LA5       120(PCS)   10P12S             L260*W61*1.5(mm)
150/250   42             3200/5500   3030                 280(PCS)   40P7S               L260*W61*1.5(mm)
180           36             4800             3535,1LA5       144(PCS)   12P12S             L260*W61*1.5(mm)
180/300   42             3840/6600   3030                 336(PCS)   48P7S               L260*W61*1.5(mm)
210           36             5600             3535,1LA5       168(PCS)   14P12S             L260*W61*1.5(mm)
210/350   42             4480/7700   3030                 392(PCS)   56P7S               L260*W61*1.5(mm)


PRODUCT FEATURES
1.By using the most powerful and efficient flood light heatsink,the completed LED light can work up to 50000 hours , save up to 80% energy,have better lighting characteristics than that of traditional metal halide lamp of 200w;

2.Massive fins for efficient cooling technology,rapidly transfer the heat of the LED chips to eh massive fins;

3.Proection rate : IP65
THE INNOVATIVE COOLING FINS STANDING THE COOLING FRONTIER
Innovative cooling fins with light weight but massive cooling dissipation area,which tightly connected to the die-cast heatsink,constitute a integrated cooling housing.
EXCELLENT PERFORMANCE STRONG PROTECTION


MATERIALS & PROCESS
1.Tempered glass panel to protect the lgiting source,the tansparent rate up to 93%;

2.1060aluminium heatsink with "zipped-fins" technology,iptimized airflow duct inside the housing;

3.The entire housing coated by electrophoretic pait,excellent corrosion resistance;

4.stainless steel screws and parts.

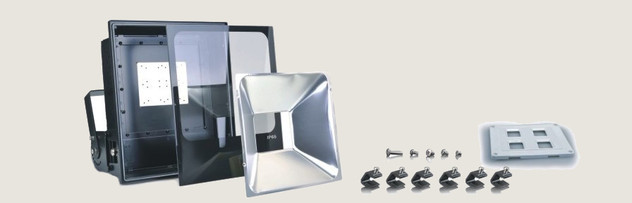

KIT SHOW

Elegant technology taken in kind,feeling the perfect texture,and experiencing our whole hearted service.

The housing mainly includes heatsink body,tempered glass,reflector,light source bracket;without light source,driver and PCB.
