HIGH MAST LAMP                                                                                                                                                                          VIEW MORE


Widely used in stadium,wharf,golf course and square,it can replace high pressure sodium lamp with 2000W and more.


PARAMETER


POWER   VOLTAGE  CURRENT   CHIP MODEL   LED QTY   WAY OF SERIES   PCB'S SIZE   BEAM ANGLE

                                                                                                       -PARALLEL


1000         33                27000          XTE                440(PCS)  4*(10P11S)     310*106*2.0(mm)   50*90 / 10*90°

1000         30                30000          XML2             280(PCS)  4*(7P10S)        310*106*2.0(mm)   50*90 / 10*90°

500           42                10800          XTE                224(PCS)  2*(8P14S)        205*67*2.0(mm)     60*90 / 30*90°

500           30                15000          XTE                220(PCS)  2*(11P10S)      132*2.0(mm)        25/45/60/90/100°

400           45                8000            XTE                150(PCS)  2*(5P15S)         205*67*2.0(mm) 25/45/60/90/100°

400           45                8000            XTE                180(PCS)  2*(6P15S)         205*67*2.0(mm) 25/45/60/90/100°

400           45                12000          XTE                200(PCS)  2*(10P10S)      132*2.0(mm)        25/45/60/90/100°

                                                            PRODUCT FEATURES


HDT TECHNOLOGY


High efficient heatpipes contact the heat source directly,maxima the performance of the heatpipe to reach the cooling effect.

HDT TECHNOLOGY
High efficient heatpipes contact the heat source directly,maxima the performance of the heatpipe to reach the cooling effect.
HDT TECHNOLOGY
High efficient heatpipes contact the heat source directly,maxima the performance of the heatpipe to reach the cooling effect.


COPPER HEATPIPE


Heat pipe by using the theory of heat transfer and refrigeration,rapid heat transfer properties of the medium to transfer heat quickly to the heat source,thermal capacity than any knowmetal.

3-D HEAT DISSIPATION

Each fins are distributed parallel relative to hollow out holes,or so appear a convection of air duct, and fins clearance form three-dimensional heat dissipation,send out quantity of heat to the greatest extent.

ZIPPED FINS TECHNOLOGY

Fins and heat conducting plate directly closely together,minimize thermal resistance,without plating,beautiful environment.

GEAR SLOTTING FIN THECHNOLOGY

Each fins to maintain equal spacing and tight fit,form a whole,effectively enhance the fins fastness,with the minimum weight to achieve maximum cooling area.

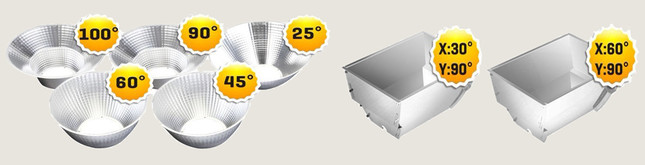

PROFESSIONAL LIGHT DISTRIBUTION FREE TO CHOOSE
